New Products
SEE OUR PRODUCTS
We deliver fully integrated turnkey solutions across concept, engineering, manufacturing, and commissioning, tailored to complex industrial and research requirements. Our portfolio reflects a proven ability to execute with precision, reliability, and complete discretion. For specific requirements, connect with our team.

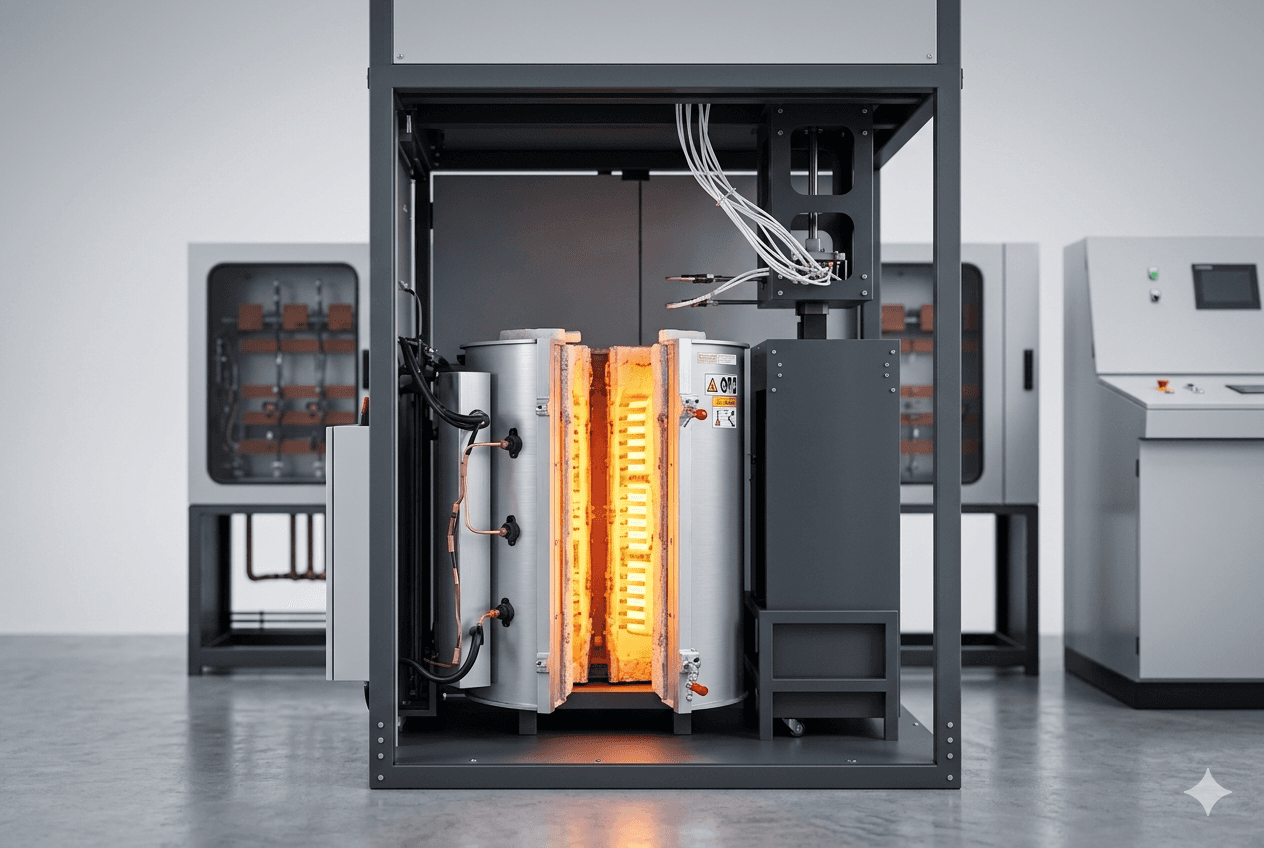

Split Furnace
Features
Capable of reaching a maximum operating temperature of 1200°C, featuring a split-type heating chamber for rapid cooling and easy access to the process tube.
Offers a generous internal chamber size to accommodate standardized reaction vessels.
Features a PLC with a high-resolution HMI and SCADA interface for real-time data logging, remote monitoring, and automated process execution.
Employs advanced thyristor controllers providing 100% variable power with infinite resolution, ensuring high switching speeds and linear correlation between input and output signals.
Integrated with a 4-channel temperature modules supporting a wide range of thermocouples (B, R, S, K, E, J, T, N) for exceptional measurement accuracy.
Equipped with high-precision solenoid valves and RS-485 communication modules for the automated control and monitoring of reduction gases.
Constructed from powder-coated mild steel with a secure closed-door rear design, integrated VFD for motor regulation, and specialized Sync-Guard protection against power fluctuations.

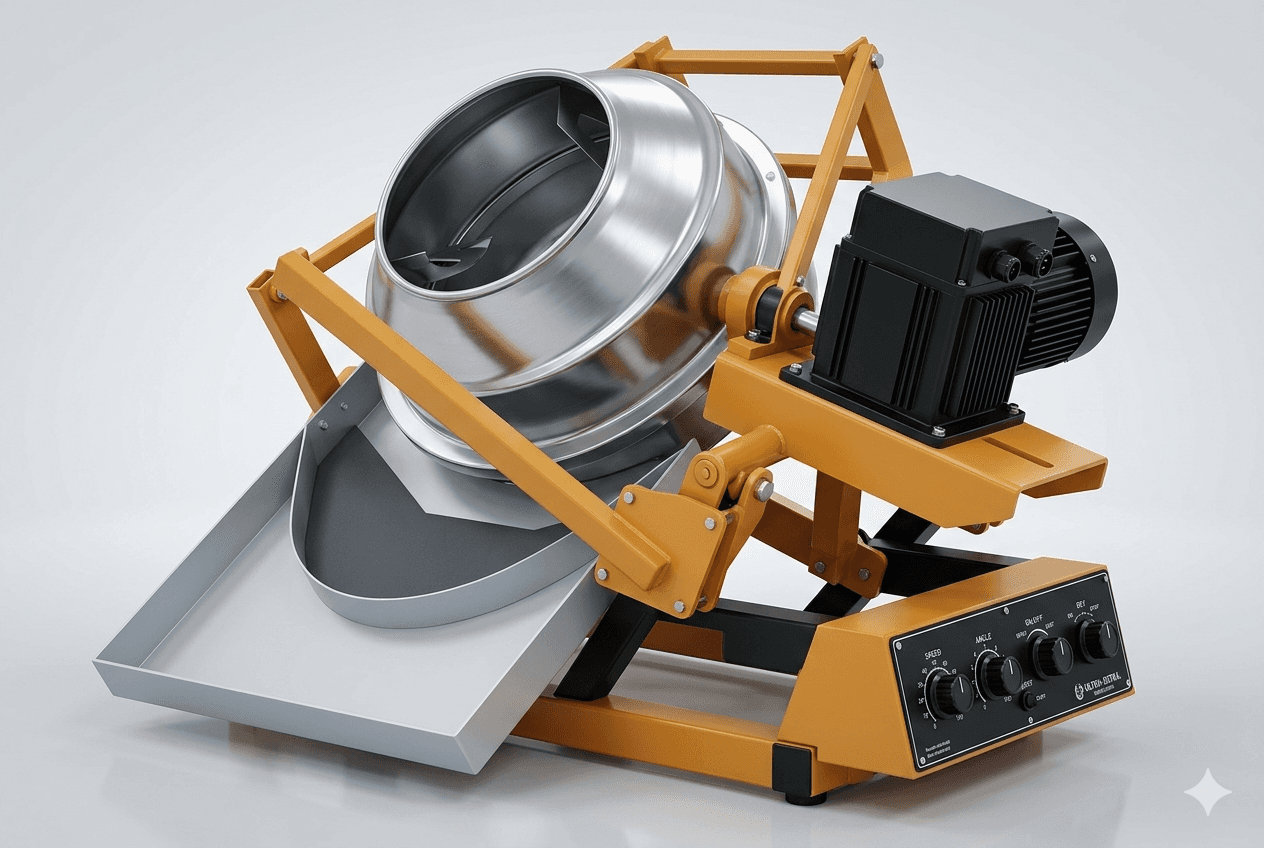

Disc Pelletiser
Features
Engineered to produce consistent spherical pellets with a diameter range of 0.85 mm to 38.1 mm (0.031–1.15 inches).
Features a variable pan speed of 0–28 RPM and a flexible inclination angle of 0–45° (expandable up to 60°) to optimize the "snowball effect" for different material types.
The disc is fabricated from heavy-duty 12-gauge Stainless Steel (SS304), ensuring excellent corrosion resistance and easy cleaning between batches.
Equipped with a flexible piping and nozzle assembly, featuring a needle valve and pressure gauge for the precise addition of water or binders during the pelletizing process.
Available with multiple pan depth options—3, 6, or 9 inches—to suit specific throughput and retention time requirements.
Utilizes a DC/SCR control drive for smooth, infinitely variable speed adjustment, allowing for fine-tuned operational stability.
Built for high-capacity testing or small-scale production with external dimensions of approximately 1200 x 1300 x 1800 mm.
Vibro Screens
Features
Includes a 7-foot MS fabricated bucket elevator with a 2-meter total height and a 2HP capacity.
Managed via an HMI-PLC electrical control panel for adjustable conveyor speeds and system monitoring.
Features nine 100kg-capacity load cells for accurate measurement across the system.
Equipped with a 2HP stainless steel suction blower specifically for handling fly ash and dust, complete with a collector bag.
The entire unit is housed in a standard 40-foot container outfitted with a 2-ton Haier split inverter air conditioner, heavy-duty exhaust fans, and tube light fittings.
